HABELOAD

VLS Series

This lifting system is equipped with an external cylinder which pneumatically moves the load up and down. The movement up and down takes place along a rail guide. Because the VLS is placed in one cross-beam, the horizontal movement also takes place on the clearance arm. In combination with a variety of grippers, this system is well-suited for handling many types of products, such as plate material, metal parts, radiators et cetera. We apply various gripper technologies, such as vacuum technology, magnetism, clamp technology and expander technology, among others.

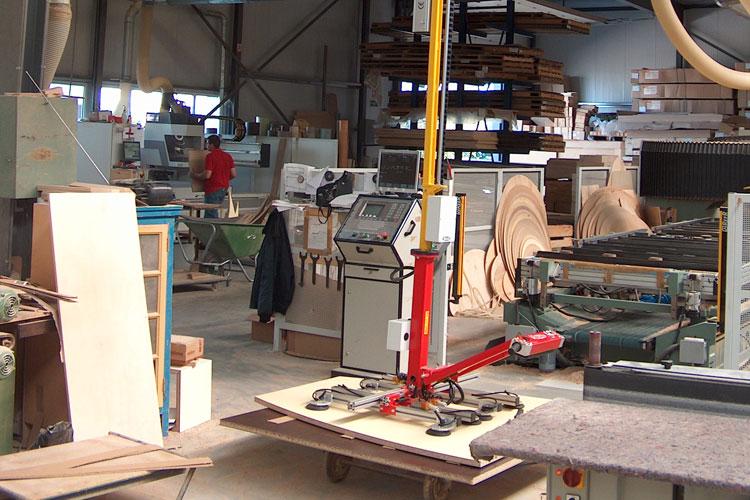

See the images for a number of illustrative examples.

Application Form:
Price & Delivery Time

Download Documentation:
PDF

Advantages

Characteristics

TypeLifting cap. (kg)Lift stroke (mm)Drive
VLS 1001001000 - 1500Pneumatic
VLS 1601601000 - 1500Pneumatic

Bigger stroke lengths available on request

Download Documentation:
PDF
